HPC Systems, Fabrics, Storage, and Acceptance Testing

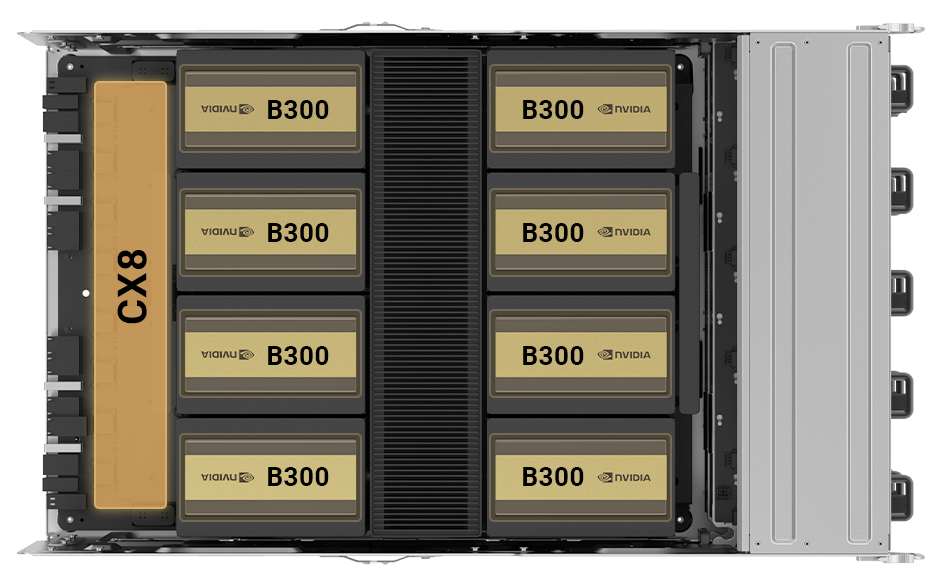

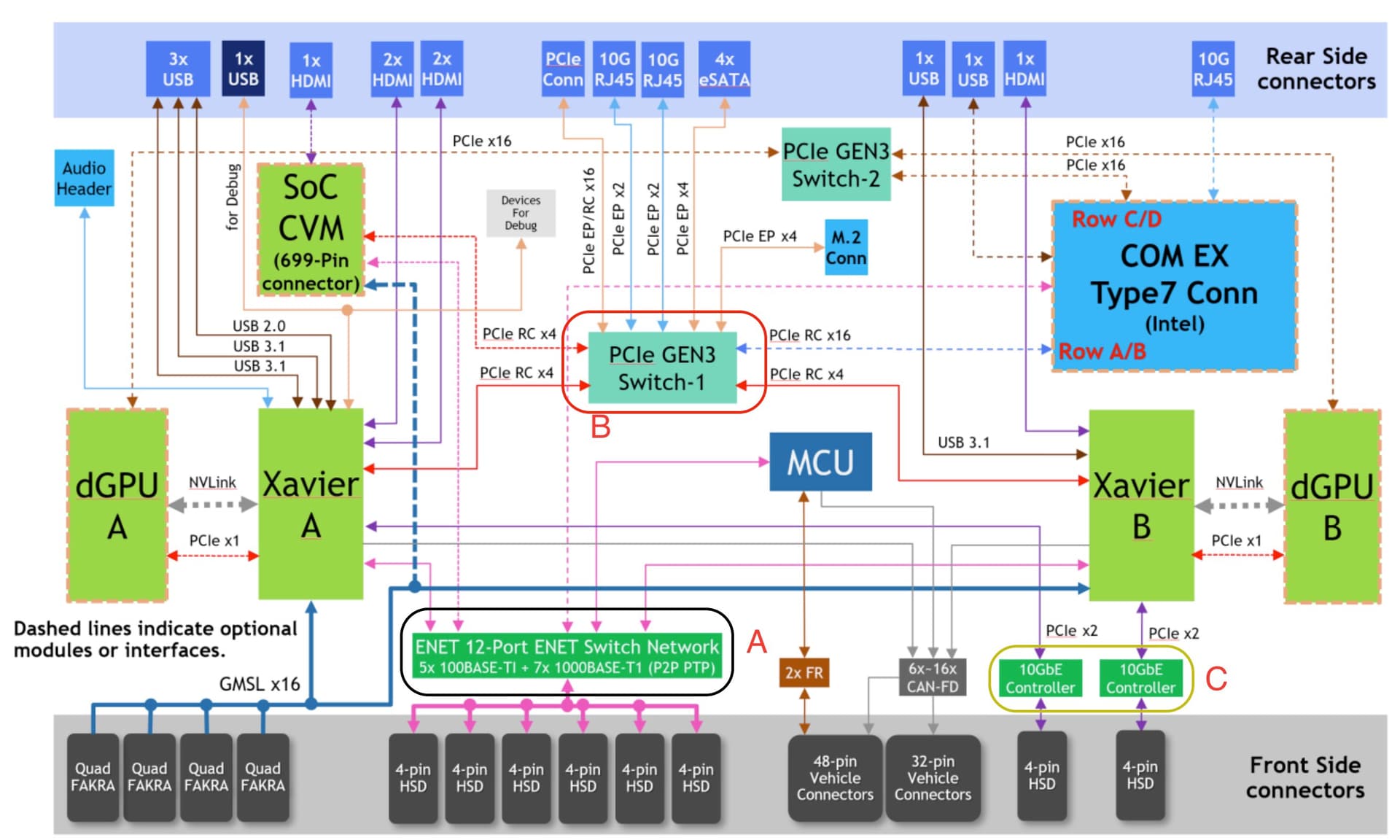

Two jobs with the same GPU count can behave differently if one stays within a node, socket, rack, or switch group while the other crosses a slower or more congested boundary. GPU-to-GPU, GPU-to-NIC, CPU socket, memory, PCIe generation, switch hop, storage target, and rack placement can all change the result even when the scheduler shows the same resource request.

That is why topology diagrams are operational artifacts, not decoration. They help explain why a job landed where it landed, which network and storage path it used, whether the allocation matched the intended locality policy, and whether the measured performance was plausible for that placement.

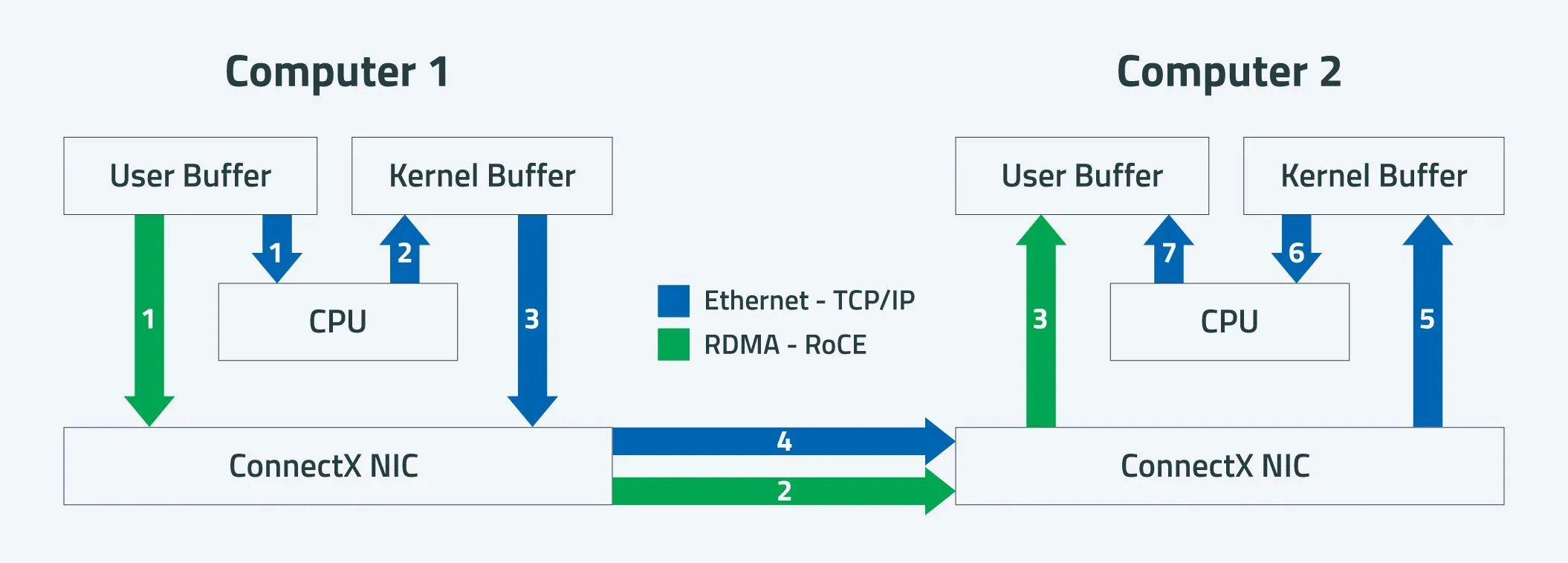

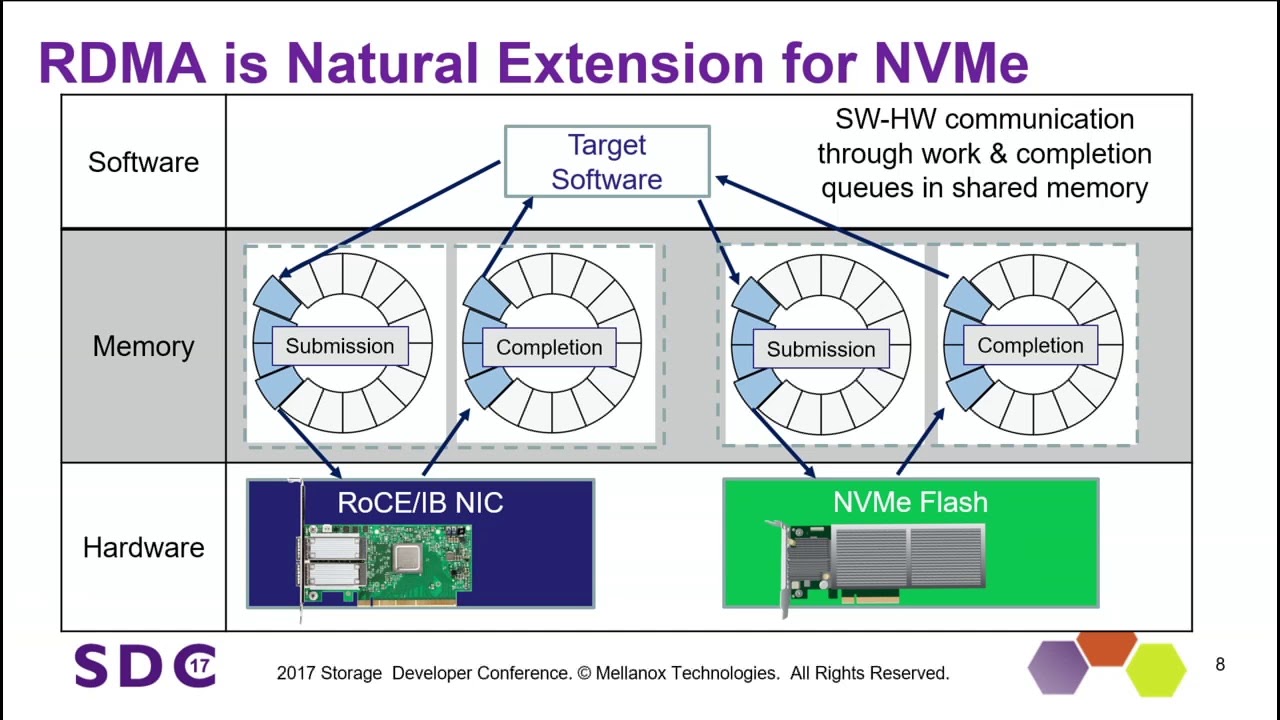

InfiniBand and RoCE both support high-performance RDMA, but they fail in different ways. InfiniBand brings a purpose-built HPC fabric model with subnet management, partitions, port state, counters, and mature expectations around low-latency traffic. RoCE brings RDMA onto Ethernet, but only works predictably when loss, PFC, ECN, MTU, GID selection, switch buffers, and congestion behavior are treated as first-class design inputs.

A green link light is not fabric validation. Operators need evidence from the NIC, switch, kernel, userspace verbs layer, benchmark commands, and workload behavior. The most useful conclusion says whether the problem follows a node, NIC, switch path, rack, storage path, queue policy, or job shape, and what changed before and after remediation.

HPC and AI workloads often alternate between intense compute phases and punishing storage phases. Checkpoint bursts, metadata storms, shard loading, random reads, shared filesystem locks, object-store staging, and recovery after failure can all make expensive GPUs wait while the symptom appears as low utilization or unstable step time.

Storage validation has to match the workload pattern. Sequential bandwidth, small-file metadata behavior, concurrent client pressure, failure recovery, cache behavior, and checkpoint cadence should be tested alongside fabric and scheduler placement, because real jobs stress those layers together.

Queue policy is not administrative paperwork. It decides fairness, priority, backfill behavior, reservations, locality, preemption, noisy-neighbor risk, and whether a user gets predictable completion or only an explanation after the job has already underperformed.

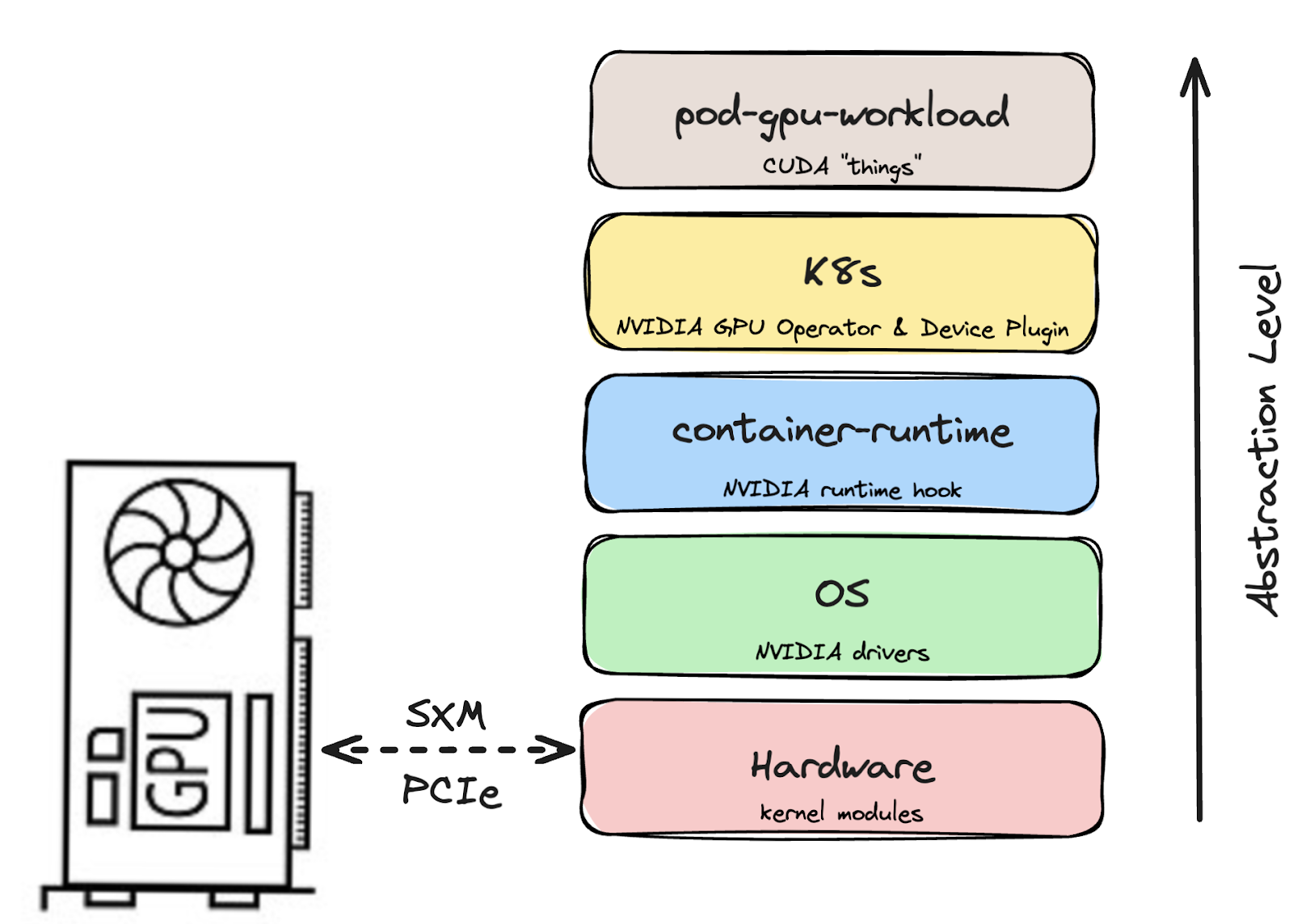

For GPU clusters, scheduler policy should understand more than free accelerators. It should account for topology-sensitive placement, maintenance state, fabric and storage health, tenant boundaries, queue purpose, and the evidence needed to explain why a job waited, where it ran, and whether the allocation matched the workload's performance assumptions.

A useful acceptance report separates plumbing tests from production readiness. Microbenchmarks prove that a link, device, or software path can hit an expected envelope. Representative applications prove that the cluster can deliver useful outcomes when users, queues, storage, monitoring, and failure handling are part of the system.

The report should include limits as clearly as wins. Known congestion domains, unstable paths, noisy-neighbor patterns, slow checkpoint behavior, thermal ceilings, queue tradeoffs, and remediation plans are more valuable than a perfect-looking benchmark table that operators cannot reproduce later.
